KMY-211 manual end milling machines are designed to provide fast, easy, precise and safe cutting for vinyl, wood, aluminum and non-ferrous metals. This machine can replace many expensive punching tools

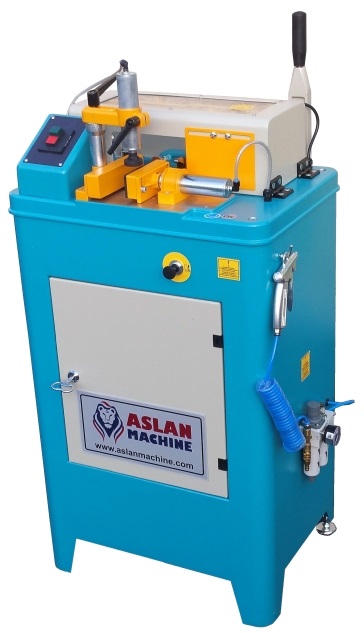

Aslan KMY-211 automatic end miller is ideal for cutting or notching the ends of aluminum and vinyl profiles. KMY-211 automatic shaper has many uses in the production of t-connections, butt joints and mullion connections on frames. One advantage of KMY-211 is that its cutters can be changed quickly. Multiple cutter stacks can be kept ready for various profiles, and they can be changed efficiently, which makes the processing of many profiles with one machine possible.


Technical Features

● For end milling the vinyl (PVC) and aluminum mullions for fastener bracket positioning.
● Manual blade travel.
● Adjustable 1 depth stop.
● Fully enclosed hood.
● Large cutting capacity.
● Full sheet metal cabinet.

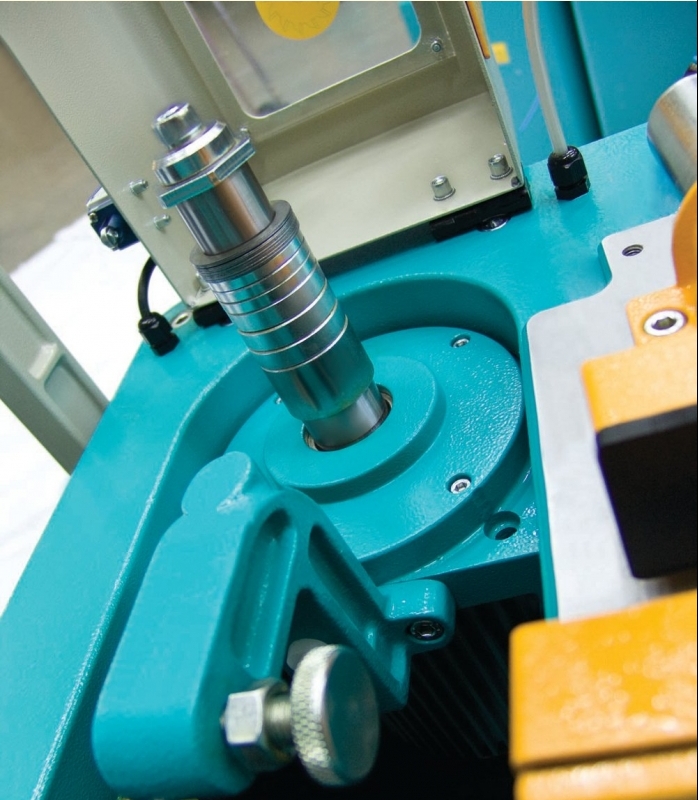

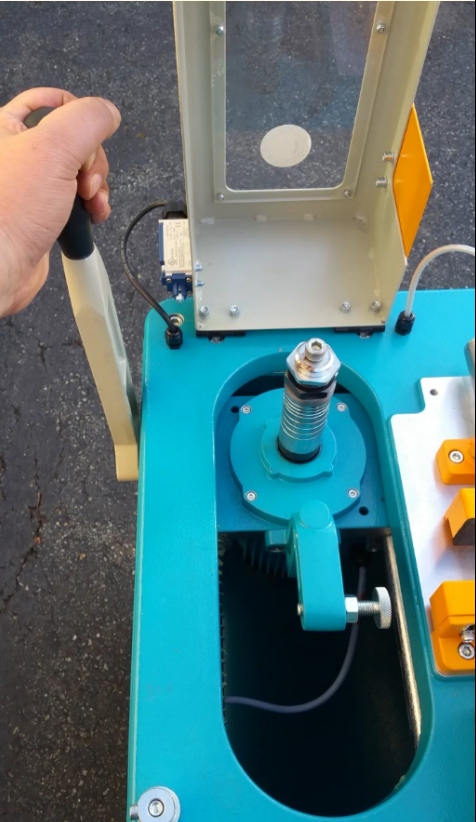

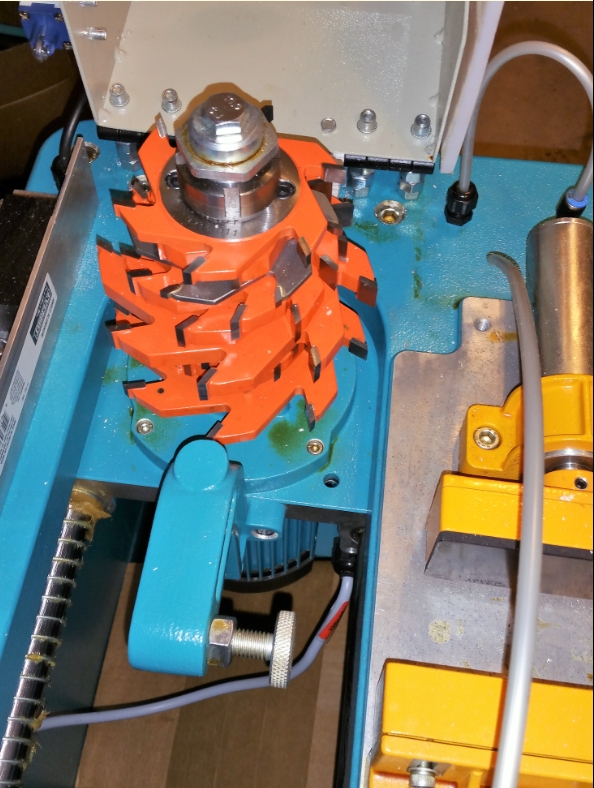

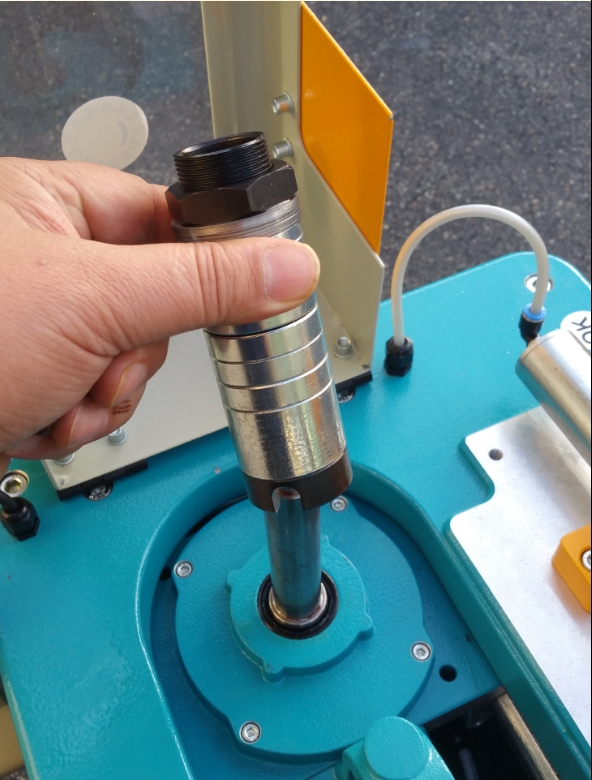

● Quick cutter-stack change feature.
● End-mills at 90 degrees.
● Pneumatic profile clamping system.
● Safety guards for protection.


Standard Equipment

●Pneumatic horizontal clamps
● Pneumatic vertical clamps
● Air gun


Optional Equipment

● Custom fixtures for your aluminum or vinyl profiles.
● Spray mist system for cutting aluminum
● Conveyors
● Dust collector


Technical Specs

● Motor Power: 0.8 kw (1 hP)
● Voltages: 230 (1 phase), 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 3000 rpm
● Max Blade Size: 160 mm (6.3 inch)
● Bore Diameter for Cutters: 30 mm
● Air Pressure: 90-120 psi (6 - 9 Bar)
● Weight: 100 kg (220 lb)
● Dimensions (WxLxH): 58x46x110 cm (23x18x43 inch.)
