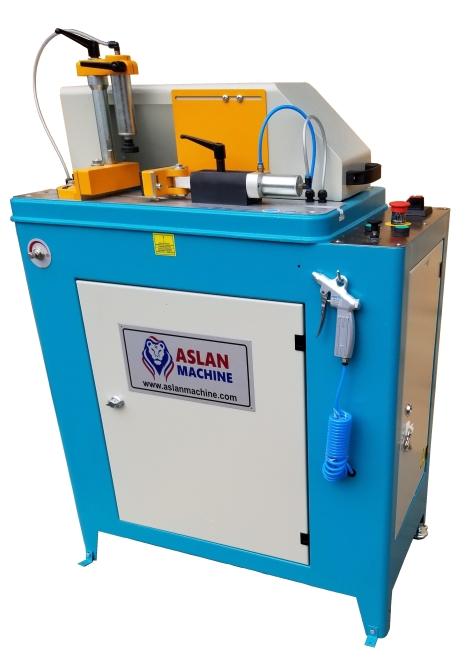

KMY-215

Automatic Endmilling Machine (Angular) (PVC) (AL)

KMY-215 automatic end milling machines are designed to provide fast, easy, precise and safe cutting for vinyl, wood, aluminum and non-ferrous metals. This machine can replace many expensive punching tools

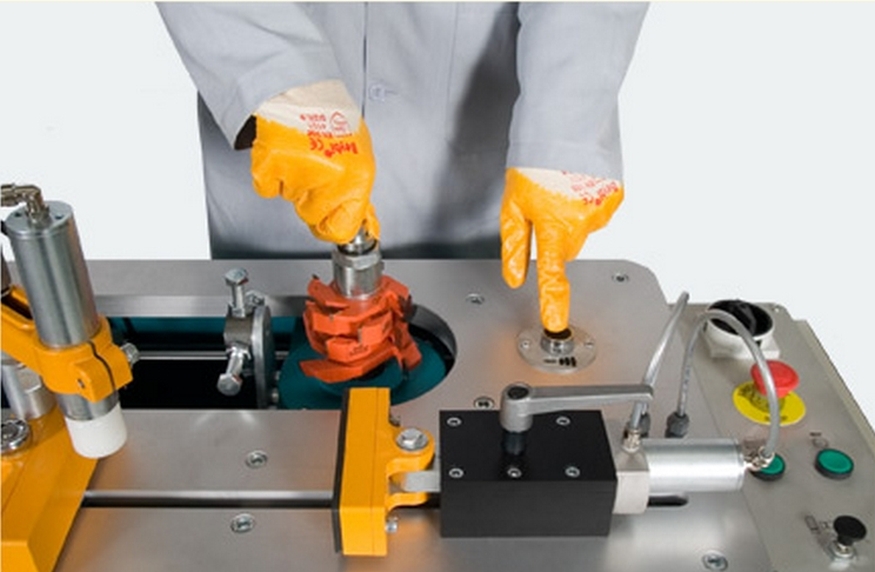

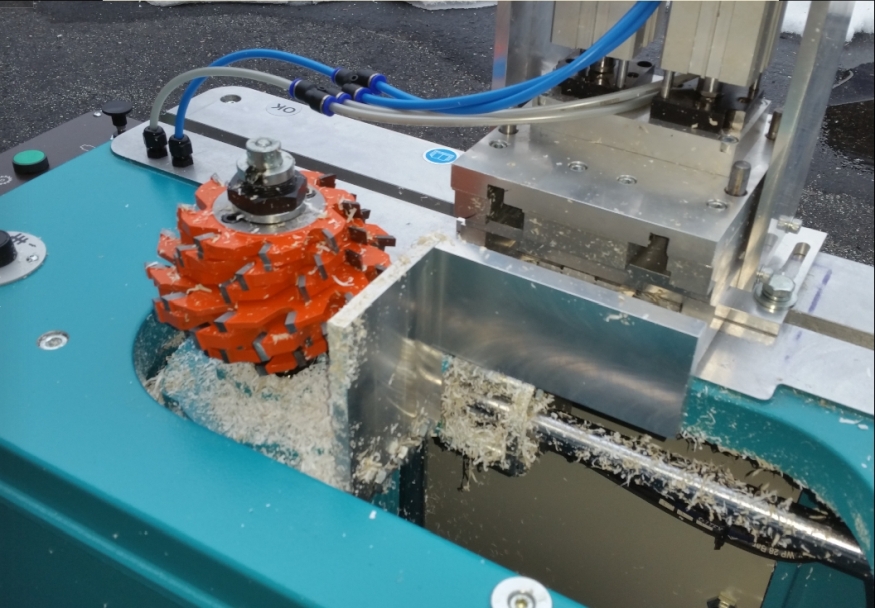

Aslan KMY-215 automatic end miller is ideal for cutting or notching the ends of aluminum and vinyl profiles. KMY-215 automatic shaper has many uses in the production of t-connections, butt joints and mullion connections on frames. One major advantage of KMY-215 is that its cutters can be changed quickly by activating a quick release system by a push of a button. Multiple cutter stacks can be kept ready for various profiles, and they can be changed super-fast and efficiently, which makes the processing of many profiles with one machine possible.

Aslan KMY-215 end milling machine is also equipped with hydro pneumatic cutter speed control which provides vibration free and smooth processing throughout the operation.

Technical Features

● For end milling the vinyl (PVC) and aluminum mullions for fastener bracket positioning.
● Automatic blade travel by a push of a button.
● Adjustable depth stops with 4 different positions.
● Fully enclosed hood.
● Large cutting capacity.
● Full sheet metal cabinet.
● Pneumatic quick cutter-stack change feature.
● End-mills at various angles up to 45 degrees.
● Pneumatic profile clamping system.
● 3 position tool holder for additional cutters.
● Safety guards for protection.

Standard Equipment

●Pneumatic horizontal clamps
● Pneumatic vertical clamps
● Air gun

Optional Equipment

● Custom fixtures for your aluminum or vinyl profiles.
● Spray mist system for cutting aluminum
● Conveyors
● Dust collector

Technical Specs

● Motor Power: 1.2 kw (1.6 hP)
● Voltages: 230 (1 phase), 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 3000 rpm
● Max Blade Size: 160 mm (6.3 inch)
● Bore Diameter for Cutters: 30 mm
● Maximum Stroke: 225 mm (8.9 inch)
● Air Pressure: 90-120 psi (6 - 9 Bar)
● Weight: 100 kg (220 lb)
● Dimensions (WxLxH): 95x55x127 cm (37x22x50 inch.)
