Products aluminum & vinyl window manufacturing machines..

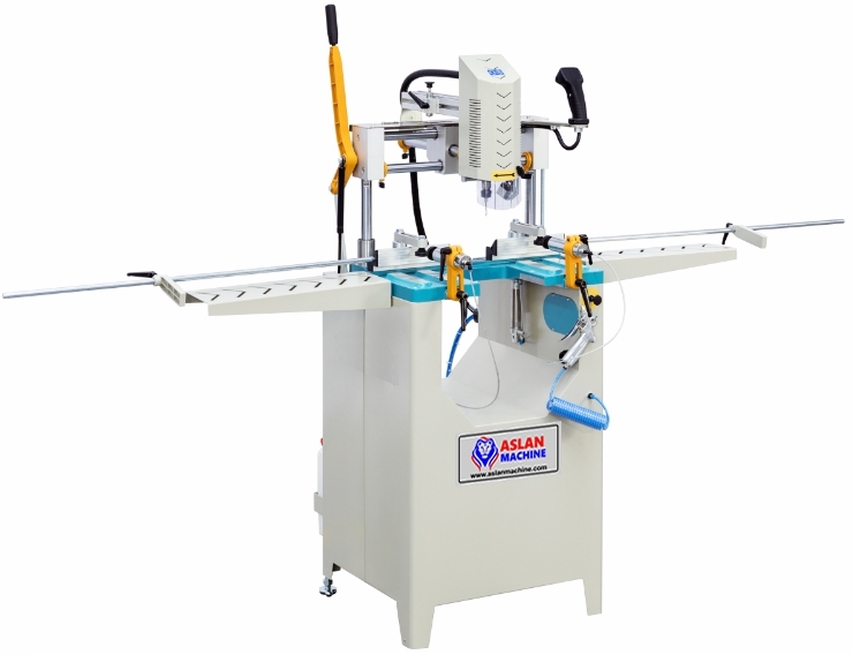

CRY-200 Copy Router is ideal for busy shops where a copy router is essential for manufacturing windows, doors and any other projects that require copy routing. CRY-200 comes with pneumatic clamps and cooling system for fast operation.

Copy Routing with CRY-200 is the easiest and quickest way for making cut-outs of any shape on aluminum and vinyl extrusions.

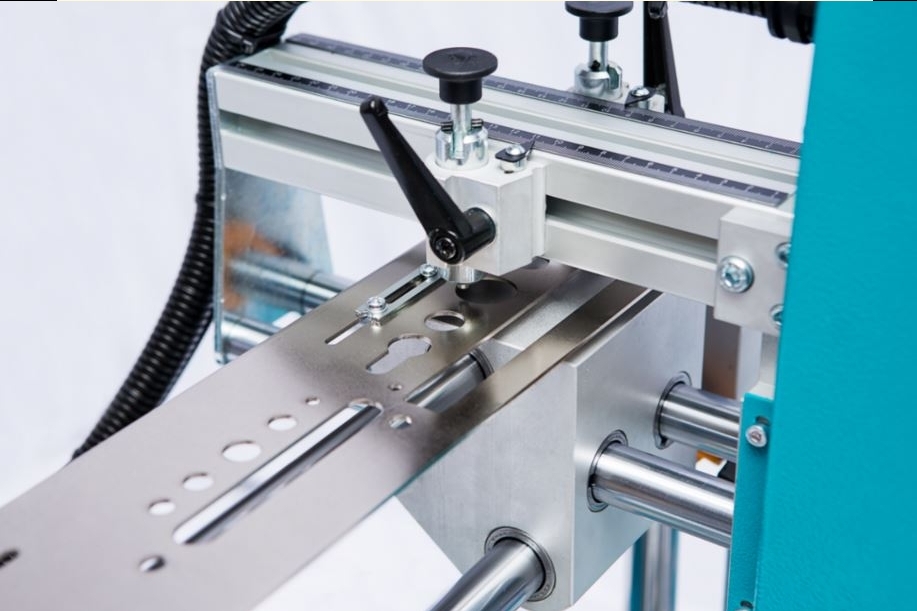

CRY-200 Copy Routers work from an inter-changeable, pre-designed metal template at the back of the machine. The shape is copied onto the extrusion by tracing the template via a copy pin. And a router bit produces the desired cut-out onto the extrusion.

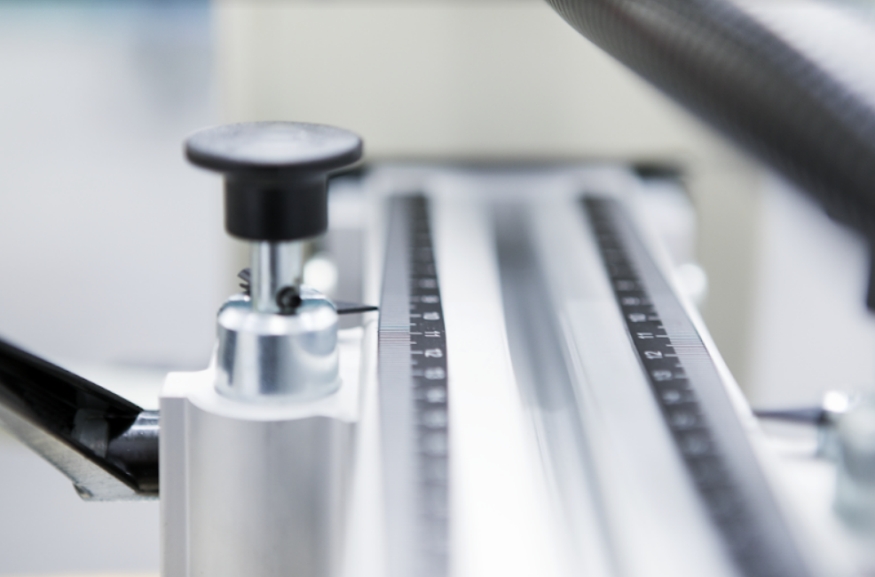

CRY-200 Copy Routers can also cut rectangular, square shapes or slots without a template by adjusting the four stop limits to the desired positions. The routing method is easy and can be done by any unskilled worker.



Technical Features

● For copy routing lock holes, hinge slots and weep-holes on vinyl (PVC) and aluminum profiles.
● Vertical copy head does copy routing.
● Performs all copying operations by using a copy template.
● Pneumatic clamping system.
● Right and left profile holding bars.
● Safety guard for protection.
● Cooling system for cutting aluminum
● Easy to use.
● 1 router bit is installed on the machine.
● High speed 12,000 rpm motor


Standard Equipment

● Machine itself.


Optional Equipment

● Spare router bits
● Blank templates for your shapes


Technical Specs

● Motor Power: 1.5 kw (2 hP)
● Voltages: 230 ( 1 phase), 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 12,000 rpm
● Weight: 140 kg (300 lb)
● Dimensions (WxLxH): 85x180x160 cm (34x71x63 inch.)
