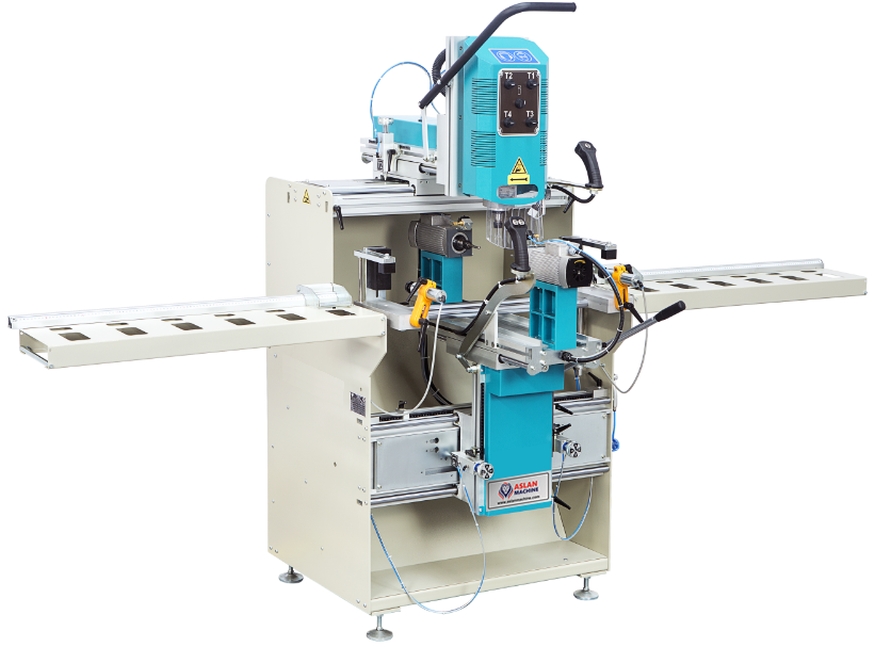

CRY-250 Copy Router comes with 3 motors, and it is designed to cut aluminum and vinyl profiles quickly and precisely in one cycle. CRY-250 is used for drilling holes for handles, hinges, espagnolette and also for opening water drain slots on PVC and aluminum profiles. CRY-250 comes with pneumatic clamps and cooling system for fast operation.

Copy Routing with CRY-250 is the easiest and quickest way for making cut-outs of any shape on aluminum and vinyl extrusions.

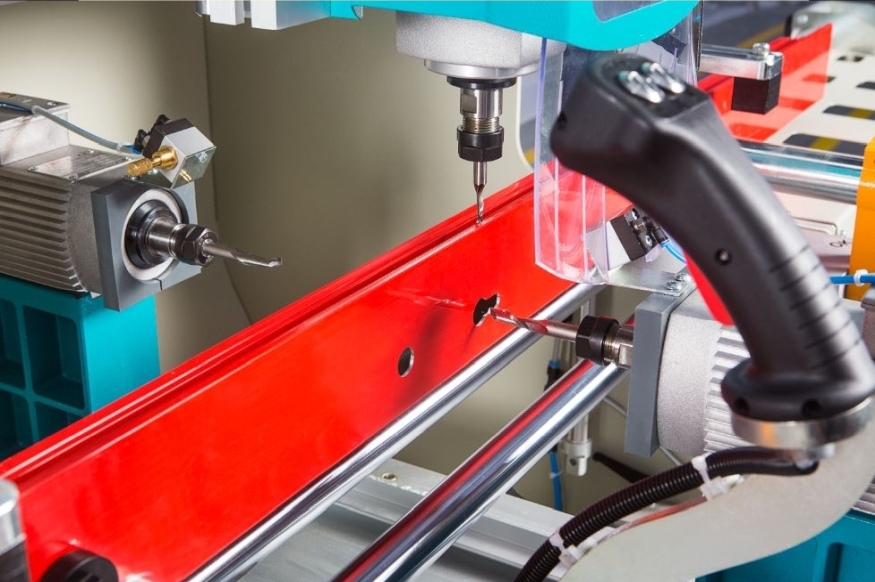

CRY-250 Copy Routers work from inter-changeable, pre-designed metal templates on the machine. The shape is copied onto the extrusion by tracing the template via a copy pin. And a router bit produces the desired cut-out onto the extrusion.

The routing method is easy and can be done by any unskilled worker.



Technical Features

● For copy routing lock holes, hinge slots and weep-holes on vinyl (PVC) and aluminum profiles.

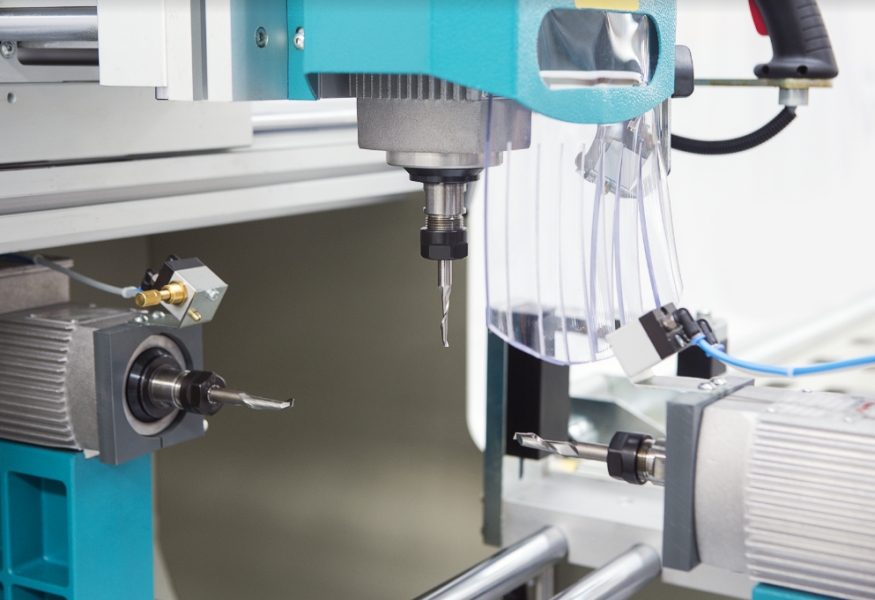

● 1 vertical and 2 horizontal spindle motors ( 3 x 1.5 hP, 12,000 RPM) .
● Designed to cut lock holes and shapes quickly and precisely on aluminum profiles without releasing the work-piece.
● 2 horizontal and 2 vertical pneumatic clamps.
● Horizontal and vertical pneumatic tracers with 3 different diameters: 5, 8, 10 mm.
● Horizontal and vertical templates with standard shapes for Aluminum and PVC profiles.

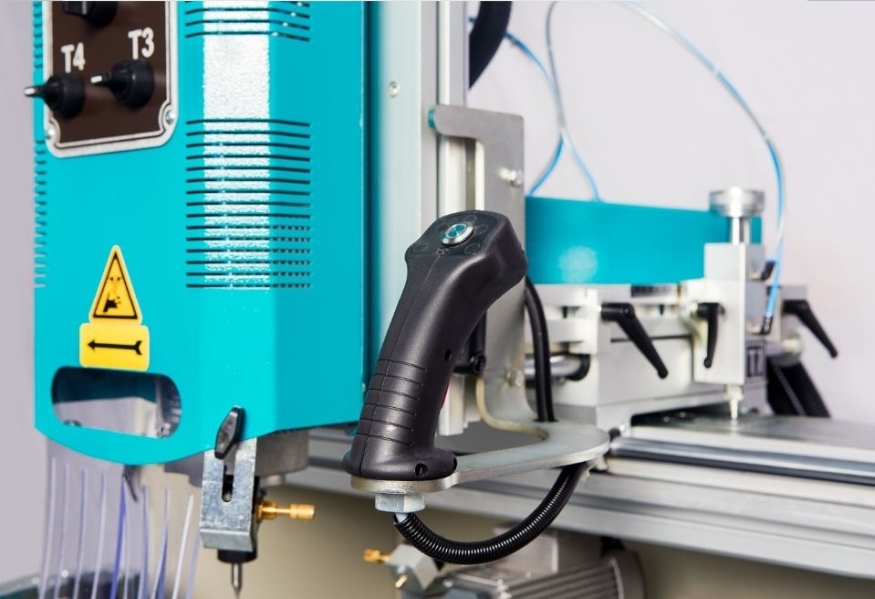

● Smooth movement, high precision and great sensitivity provided with gas spring and ergonomic handles.
● 1 meter (3.3 feet) of roller support table at the right and the left side .
● Manually adjustable profile stops placed on the right and left to allow the work piece to be positioned properly on the machine.
● Spray mist lubrication system for Aluminum Cutting.
● Safety guard for protection.
● Easy to use.
● 3 router bits are installed on the machine.


Standard Equipment

● Machine itself.


Optional Equipment

● Spare router bits
● Collets for router bits with Ø 8 and Ø10 mm shanks
● Special templates for your shapes
● Blank templates for you to cut to your own design.


Technical Specs

● Motor Power: 1.1 kw (1.5 hP) x 3
● Voltages: 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 12,000 rpm
● Weight: 380 kg (850 lb)
● Dimensions (WxLxH): 110x110x180 cm (44x44x70 inch.)
