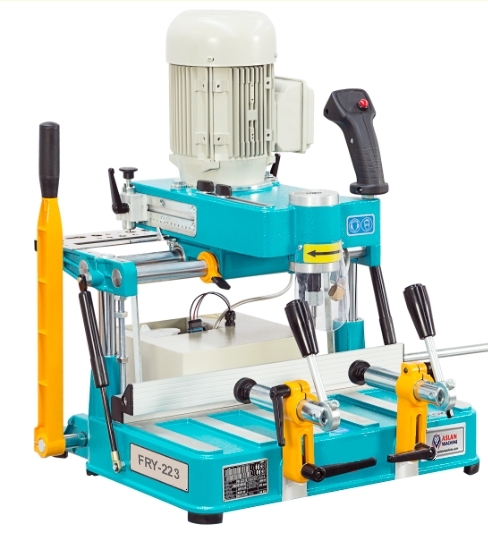

FRY-223 Copy Router is ideal for midsize shops where a copy router is essential for manufacturing windows, doors and any other projects that require copy routing. FRY-223 comes with manual clamps and optional cooling system for fast operation.

Copy Routing with FRY-223 is the easiest and quickest way for making cut-outs of any shape on aluminum and vinyl extrusions.

FRY-223 Copy Routers work from an inter-changeable, pre-designed metal template at the back of the machine. The shape is copied onto the extrusion by tracing the template via a copy pin. And a router bit produces the desired cut-out onto the extrusion.

FRY-223 Copy Routers can also cut rectangular, square shapes or slots without a template by adjusting the four stop limits to the desired positions. The routing method is easy and can be done by any unskilled worker.



Technical Features

● For copy routing lock holes, hinge slots and weep-holes on vinyl (PVC) and aluminum profiles.

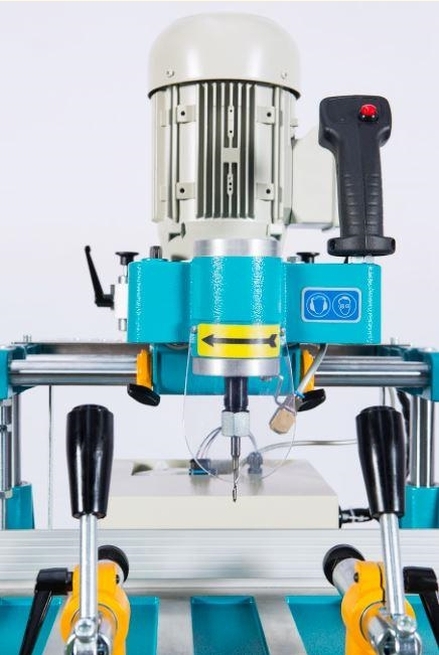

● Vertical copy head does copy routing.
● Performs all copying operations by using a copy template.
● Manual clamping system.
● Right and left profile holding bars.
● Safety guard for protection.
● Easy to use.
● 1 router bit is installed on the machine.


Standard Equipment

● Machine itself.


Optional Equipment

● Spare router bits
● Cooling system for cutting aluminum
● Blank templates for your shapes


Technical Specs

● Motor Power: 0.75 kw (1 hP)
● Voltages: 230 (1 phase), 50/60 Hz.
● Rotation: 14,000 rpm
● Weight: 37 kg (82 lb)
● Dimensions (WxLxH): 80x64x64 cm (25x32x59 inch.)
