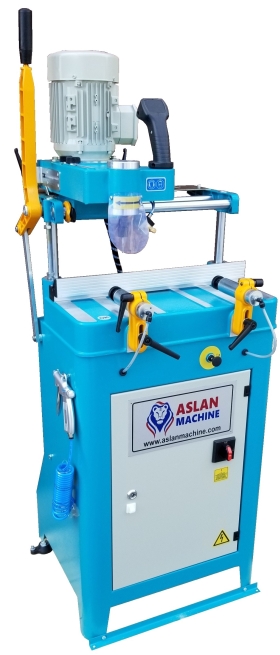

FRY-221 Copy Router is ideal for midsize shops where a copy router is essential for manufacturing windows, doors and any other projects that require copy routing. FRY-221 comes with pneumatic clamps and cooling system for fast operation.

Copy Routing with FRY-221 is the easiest and quickest way for making cut-outs of any shape on aluminum and vinyl extrusions.

FRY-221 Copy Routers work from an inter-changeable, pre-designed metal template at the back of the machine. The shape is copied onto the extrusion by tracing the template via a copy pin. And a router bit produces the desired cut-out onto the extrusion.

FRY-221 Copy Routers can also cut rectangular, square shapes or slots without a template by adjusting the four stop limits to the desired positions. The routing method is easy and can be done by any unskilled worker.



Technical Features

● For copy routing lock holes, hinge slots and weep-holes on vinyl (PVC) and aluminum profiles.
● Vertical copy head does copying.
● Performs all copying operations by using a copy template.
● Pneumatic clamping system.
● Right and left profile holding bars.
● Safety guard for protection.
● Easy to use.
● 1 router bit is installed on the machine.
● High speed 14,000 rpm motor


Standard Equipment

● Machine itself.


Optional Equipment

● Spare router bits
● Cooling system for cutting aluminum
● Blank templates for your shapes
● Vertical travel up to 5.9 inches


Technical Specs

● Motor Power: 0.75 kw (1 hP)
● Voltages: 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 14,000 rpm
● Weight: 72 kg (160 lb)
● Dimensions (WxLxH): 64x80x149 cm (25x32x59 inch.)

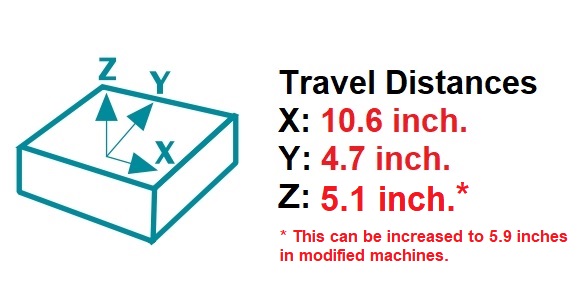

Cutting Diagram
