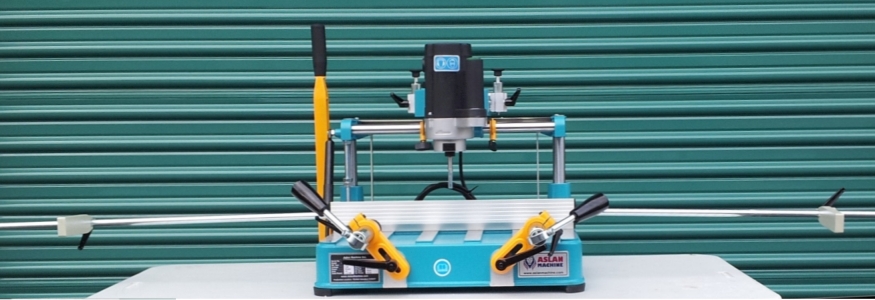

FRY-222 Table Top Router is ideal for small shops where a small copy router will do just fine. FRY-222 is more compact than the FRY-221 and does not require a pneumatic connection.

Copy Routing with FRY-222 is the easiest and quickest way for making cut-outs of any shape on aluminum and vinyl extrusions.

FRY-222 Copy Routers work from an inter-changeable, pre-designed metal template at the back of the machine. The shape is copied onto the extrusion by tracing the template via a copy pin. And a router bit produces the desired cut-out onto the extrusion.

FRY-222 Copy Routers can also cut rectangular, square shapes or slots without a template by adjusting the four stop limits to the desired positions. The routing method is easy and can be done by any unskilled worker.



Technical Features

● For copy routing lock holes, hinge slots and weep-holes on vinyl (PVC) and aluminum profiles.
● Vertical copy head does copying.
● Performs all copying operations by using a copy template.
● Manual profile clamping system.
● Right and left profile holding bars.
● Safety guard for protection.
● Easy to use.
● 1 router bit is installed on the machine.
● High speed 27,000 rpm motor


Standard Equipment

● Machine itself.


Optional Equipment

● Spare Router Bit


Technical Specs

● Motor Power: 1.2 kw (1.5 hP)
● Voltages: 120 (1 phase), 230 (1 phase), 50/60 Hz.
● Rotation: 27,000 rpm
● Weight: 26 kg (58 lb)
● Dimensions (WxLxH): 53x60x48 cm (21x24x19 inch.)
